Aerogel Insulation Reduces Heat Loss on Small Pipes in Confined Spaces
Meets Stringent Energy Conservation Demands
Challenges
Insulation of school hot water pipes in confined spaces.
The insulation was used to prevent heat loss and protect personnel. Maximum temperature of pipes can exceed 80°C (176°F).
This application demanded a highly efficient insulation system to meet the required heat loss and energy conservation demands of the local government.
Traditional materials such as fiberglass and PIR could not meet the energy savings requirements in the confined spaces available.
AEROGEL SOLUTION
The Swiss engineering consultancy EJ Bertsch worked with AGI to develop an aerogel small-diameter pipe insulation solution that met all requirements.
A single layer of 6.5 mm
Spaceloft™ 6200

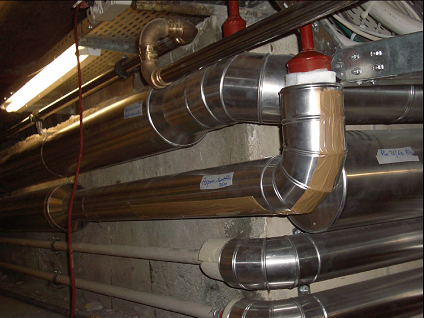

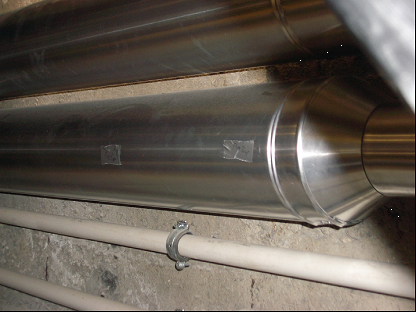

and 1 mm alu cladding was ideal to meet the required hot side temperature.
The full installation was carried out by AGI.
Benefits
The heat loss was reduced to 7.3 W/mt.

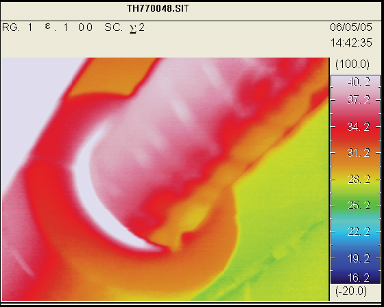

The touch temperature was reduced to below 30°C (86°F).
The engineering company specified a new hospital project in Lucerne to be insulated with Aspen Aerogels materials.
Product Used
Spaceloft™ 6200
