INDUSTRIAL

6 mm Aerogel Dramatically Reduces External Surface Temperature of Piping

Safe touch temperature reached with minimal amount of aerogel insulation

Challenges

Insulate piping that has a diameter of 274 mm and a process temperature of 120°C (248°F).
The insulation objectives were to:

Eliminate heat dispersion from the piping into the surrounding room.
Balance cost and thickness to achieve a safe surface touch temperature of 60°C (140°F).
Provide a finished surface that didn´t require metallic cladding.
Keep the overall diameter of the insulated piping small so more piping can fit in the space later.

AEROGEL SOLUTION

Agosti Isolazioni Termiche installed an aerogel solution of 6 mm Pyrogel® 6350 using a specifically chosen adhesive that was tested prior to installation.

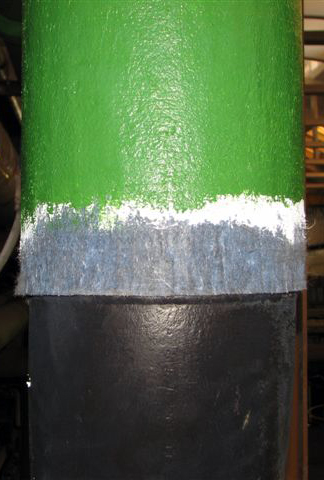

The external surface was covered with layers of varnish that were tested prior to installation.

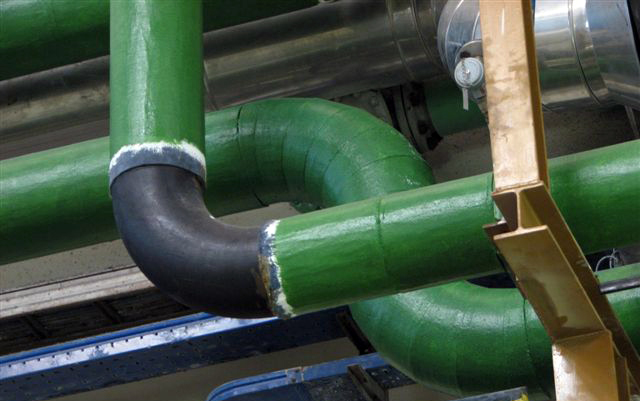

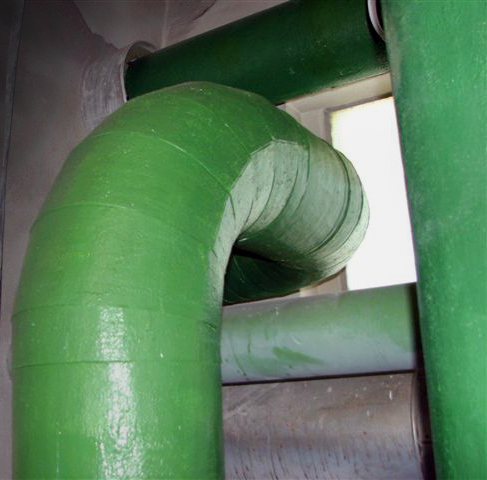

Piping was colored in green to identify the fluid in the pipe.

Benefits

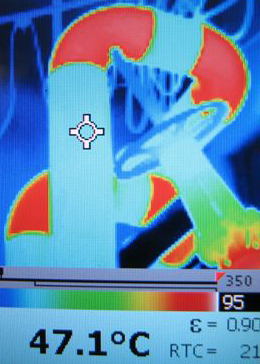

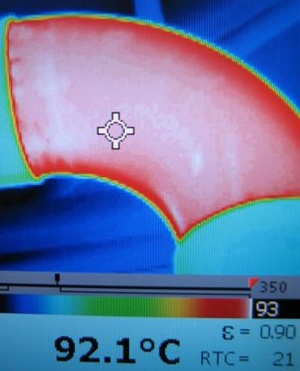

The end user observed a dramatic reduction of the external surface temperature with only a 6 mm insulation thickness.
No metal cladding was required.

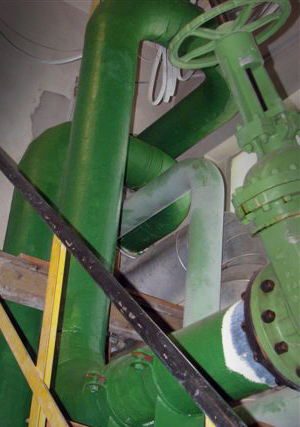

The finished surface was easily painted to identify the fluid being processed in the piping.

Product Used

Pyrogel® 6350

Product OverviewInstallation Partner

Agosti Isolazioni Termiche, Italy
