Exhaust Duct Heat Loss Reduced by 50 Percent

Working temperature near unit dramatically improved

Challenges

Insulation of industrial incineration unit´s exhaust duct.
The insulation was used to prevent heat loss and protect personnel. Maximum temperature of the exhaust gas can exceed 500°C (932°F).
The previous insulation solution was based on encapsulated ceramic fiber blankets. Due to limited space, the heat loss was creating an unacceptably high working temperature in the vicinity of the incineration unit.
The touch temperature was 85°C (185°F), which was a health and safety risk.

AEROGEL SOLUTION

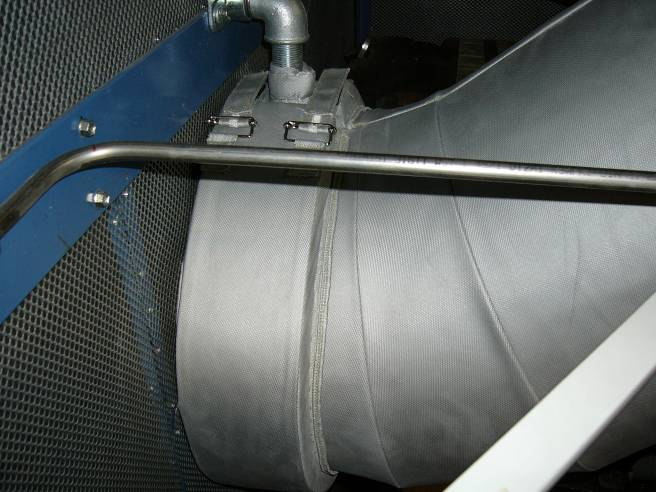

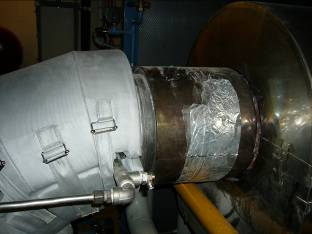

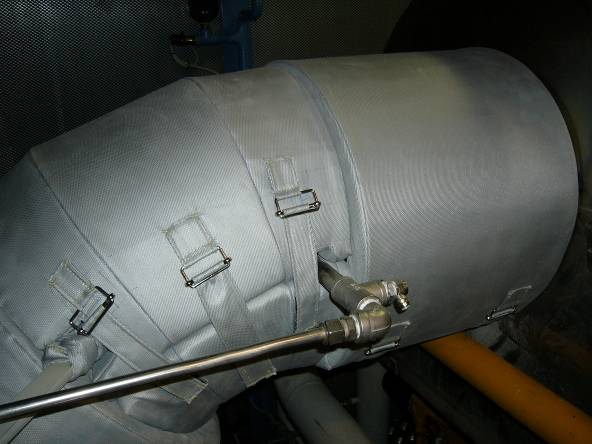

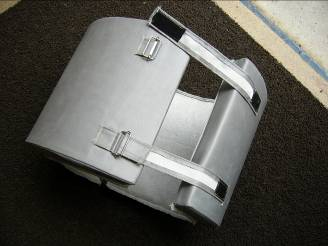

Aspen Aerogels designed a multi-layer, encapsulated aerogel system that reduced the touch temperature and heat loss to acceptable levels.
The hot-side temperature was reduced using Pyrogel® 6670 with reinforcing layers of Pyrogel® 6350.
The encapsulation and installation was carried out by AGI.

Benefits

Heat loss was reduced by 50%.
Touch temperature was reduced from 85°C (185°F) with ceramic fiber to below 50°C (122°F) with the thinner aerogel solution.
The client requested that the whole incineration exhaust system be insulated with aerogel.

Product Used

Pyrogel® 6350

Pyrogel® 6670
