Aerogel Provides Thermal Insulation and Fire Protection for Airplane Firewall

High performance, flame resistance of aerogel ideal for temperature barrier
Original Equipment ManufacturerOriginal Equipment ManufacturerOriginal Equipment ManufacturerOriginal Equipment ManufacturerOriginal Equipment ManufacturerOriginal Equipment Manufacturer
CHALLENGES

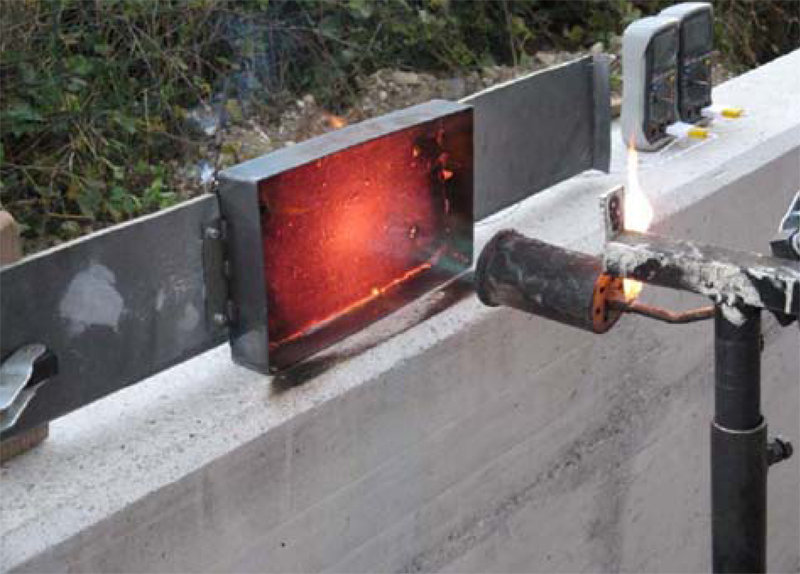

  • The insulation had to resist intensive open flame exposure (1100°C above ambient temperature) for at least 15 minutes.

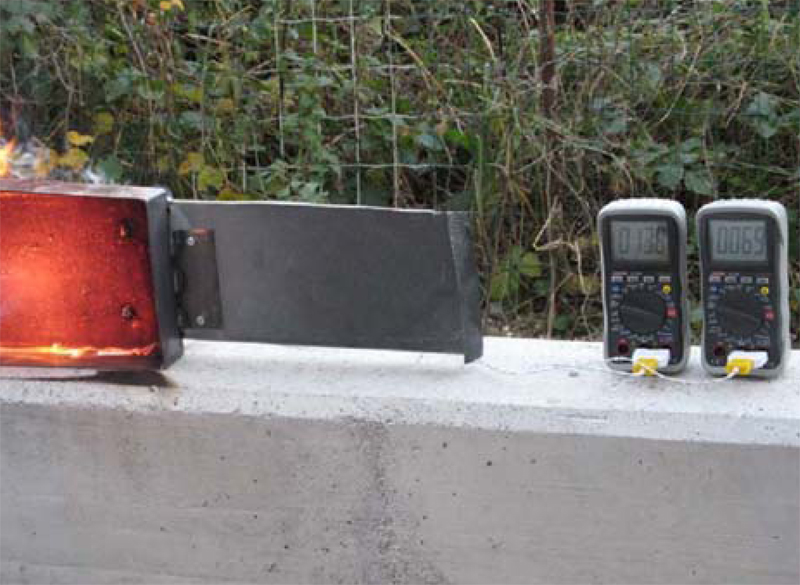

  • The cold side of the insulation could not reach higher than 150°C above ambient temperature.
  • The insulation needed to be light weight and install quickly and easily for serial production purposes.
AEROGEL SOLUTION

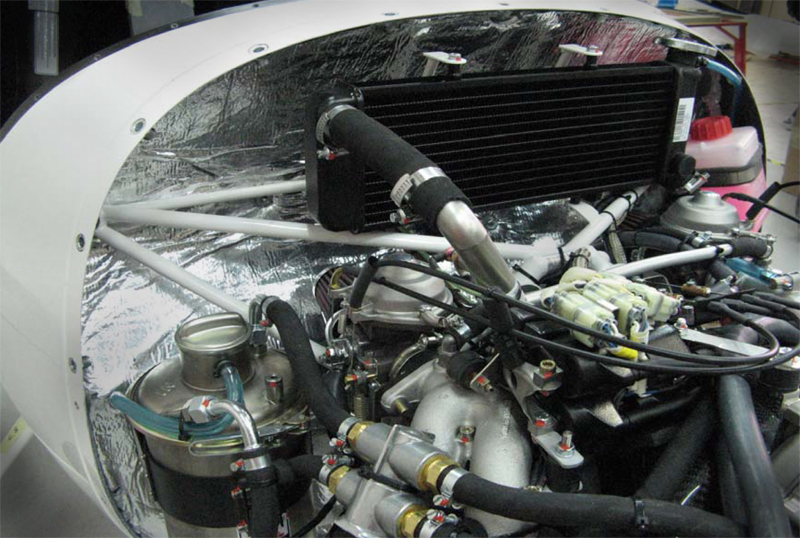

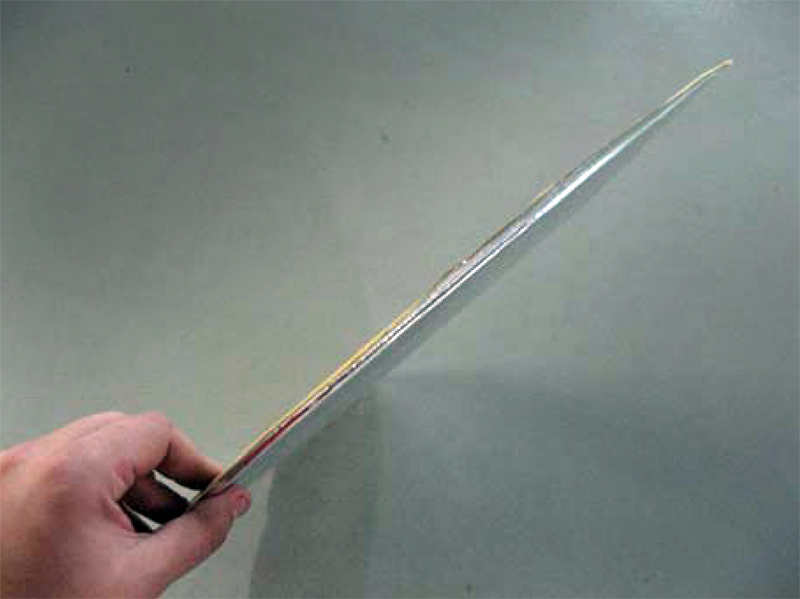

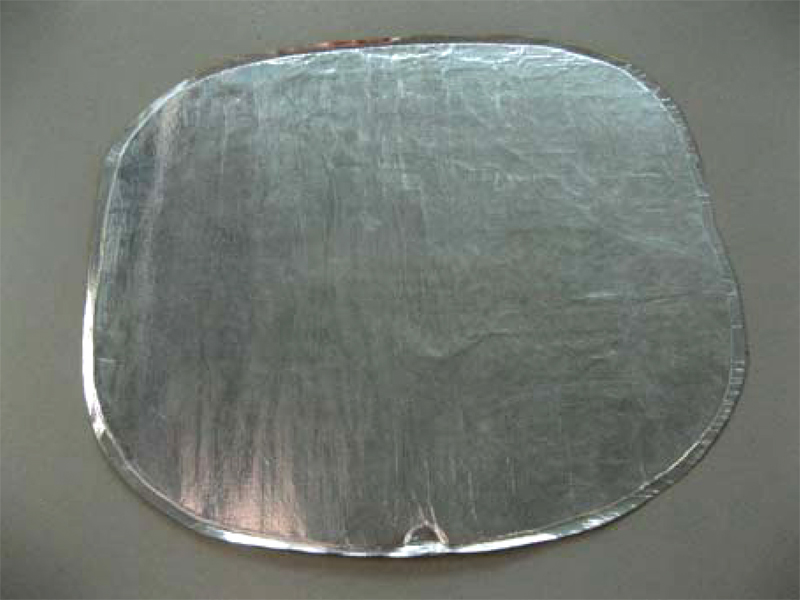

  • Pipistrel d.o.o. Ajdovscina developed a solution of encapsulated 6 mm Pyrogel® 6350 with a self-adhesive cold side.
  • The total thickness was just 7 mm.
BENEFITS
  • Pyrogel was a cost-effective solution that met all performance and other challenges.
  • The encapsulated solution was much lighter than conventional metal-sheet solutions.
  • Its cold side has a much lower temperature than conventional metal-sheet solutions, critical for epoxy-reinforced fiber composite constructions.
Product Used

Spaceloft® 6350
