ORIGINAL EQUIPMENT MANUFACTURER

Tractor Oil Tank Protected by Aerogel Heat Shield in Tight Space

Insulation maintains high performance even in exposed environment

CHALLENGES

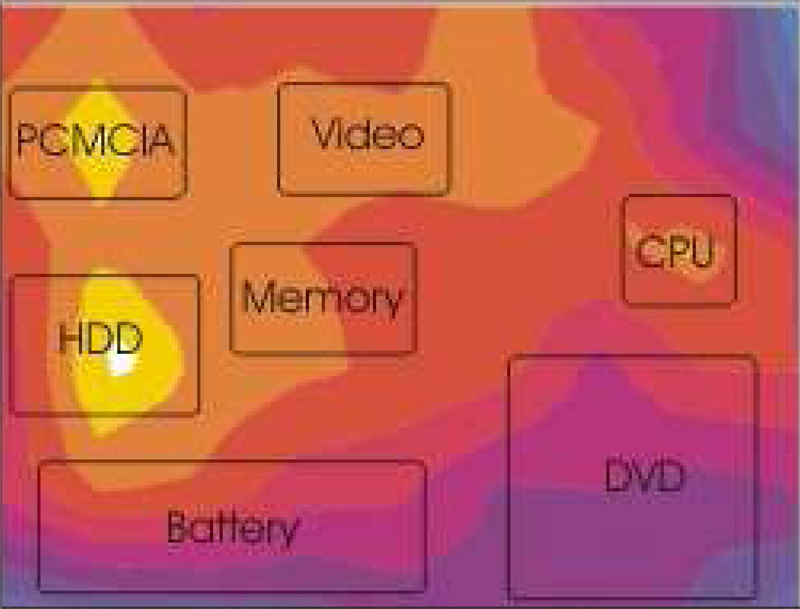

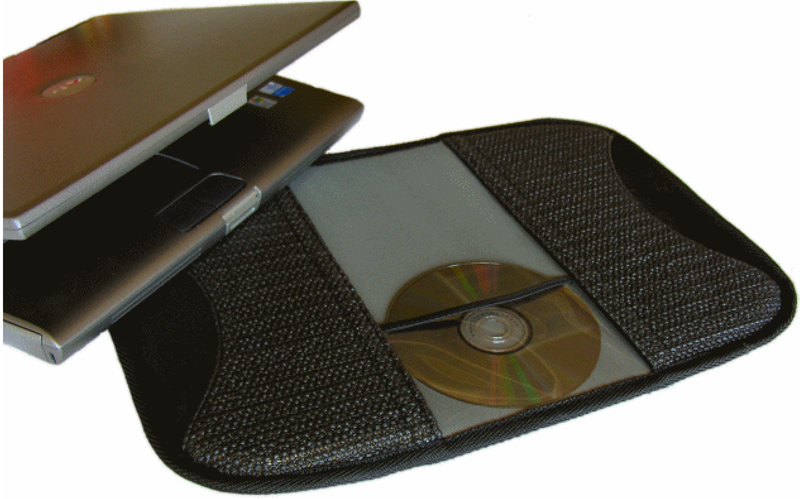

Develop aerogel inserts for laptop desks to block intense heat from bottom of laptop computers.
Reduce heat transfer to the extent a 130°F (55°C) surface temperature creates less than a 5°F temperature rise across the laptop desk over a four-hour period in a 70°F (21°C) ambient environment, while ensuring internal laptop temperatures remain constant or decrease.
Ensure no thermal degradation from compression over time.
Increase the thickness of the product by no more than 0.3" and the weight by no more than 4 oz.
Ensure the encapsulated aerogel insulation is acoustically silent when flexed (no 'crinkle' sounds).
Design the inserts to match the product styling and be installed at the point of fulfillment in under a minute without any tools.

AEROGEL SOLUTION

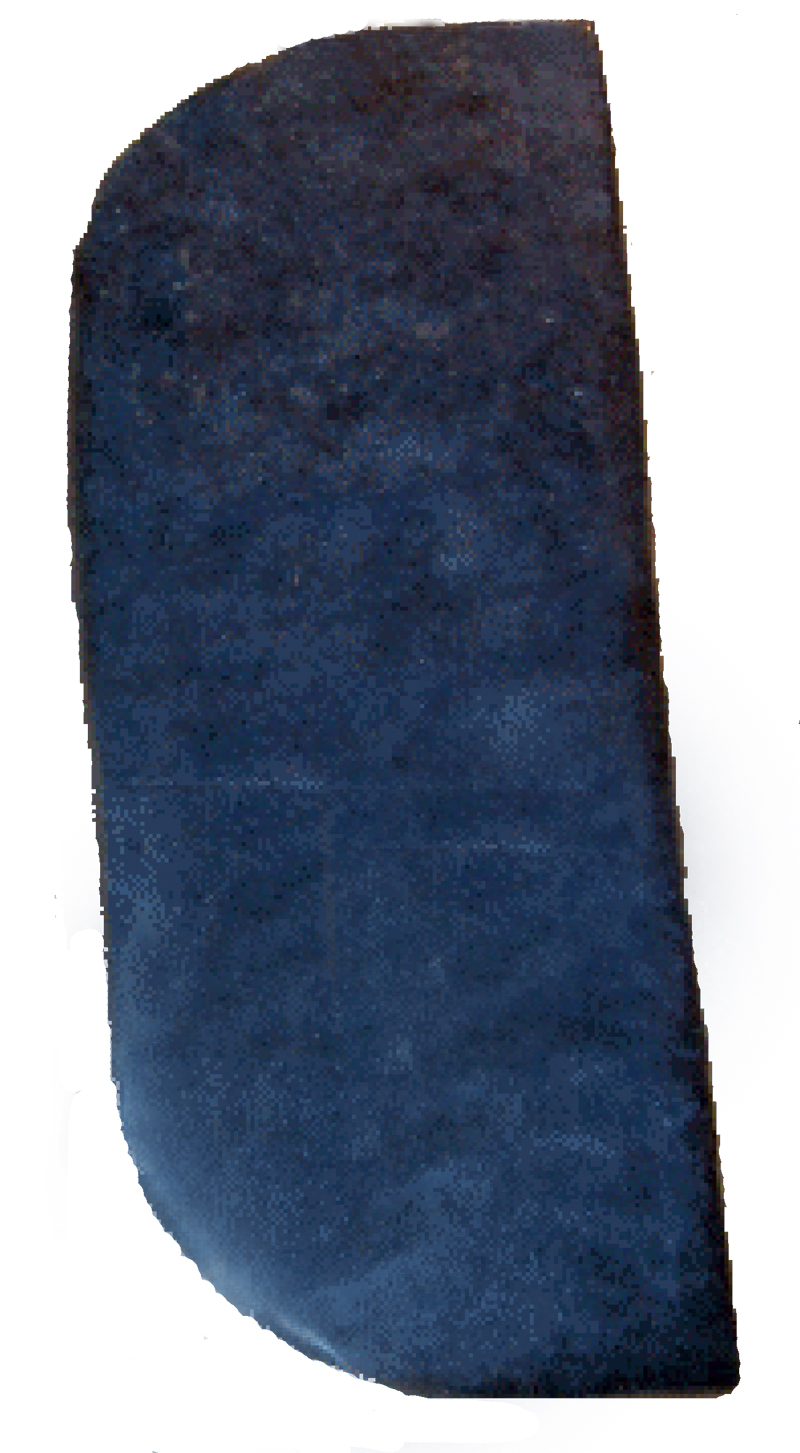

An aerogel solution of 6 mm Spaceloft® 6251 was chosen for the laptop desk inserts.

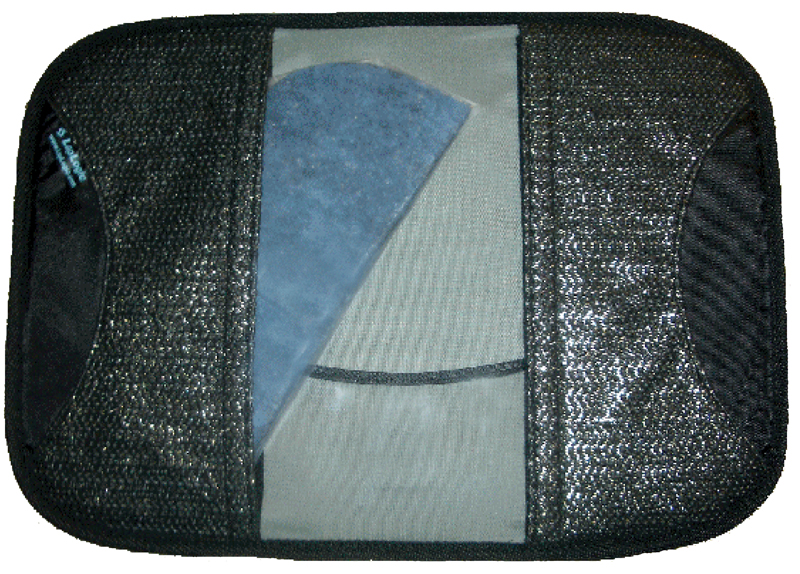

The inserts were strategically sized and shaped to integrate into the product design and stitching with no visible exterior changes.

BENEFITS

The Spaceloft 6251 inserts far exceeded the heat transfer goals, showing less than a 2°F temperature rise across the laptop desk over an eight-hour period in a 70°F (21°C) ambient. Additionally, internal laptop temperatures decreased below normal.
Testing showed no thermal degradation due to compression.

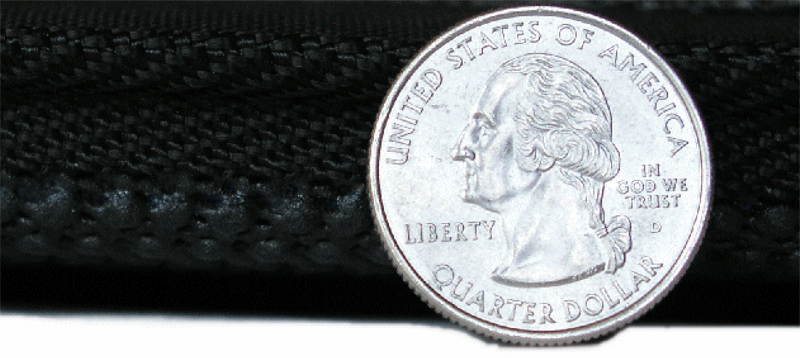

Product thickness increased 0.25", and product weight increased less than 3 oz - significantly better than alternative insulations.
The inserts met encapsulation goals, required no changes to product styling, and could be installed in under 40 seconds, exceeding goal.
